Autel Autolink ML319 Automotive Scanner instead of Autel AL319 Car Autel Autolink ML319 Automotive Scanner instead of Autel AL319 Car



Autel AutoLink ML319



Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the Auto Link ML319 is truly the ultimate in ease and affordability, enabling users to verify repairs, road test, check State Emission Monitor Status and solve basic engine and driveability problems. It eliminates drive cycle guesswork by notifying the driver with color codes LEDs, audible tone and dynamic all-in-one I/M readiness status.





Features

  • Works on ALL 1996 and newer vehicles (OBD II & CAN)-domestic and import

  • Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification

  • Bright color coded LEDs and built in speaker provide both visual and audible indication for readiness verification

  • Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes

  • Easily determines the cause of the Malfunction Indicator Light( MIL)

  • Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors

  • Displays DTC definitions on the TFT color screen

  • Views freeze frame data

  • Displays monitor and I/M readiness status (emissions)

  • Reads live PCM data stream

  • Retrieves vehicle information(VIN, CIN and CVN)

  • Multilingual menu and DTC definitions- English, Spanish and French, etc

  • Extremely easy to use and highly reliable

  • Internet updateable and upgradeable





Specifications:

•    Display                                   TFT color display (220 x 176 dpi)

•    Operating Temperature              0 to 60°C (32 to 140 F°)

•    Storage Temperature                -20 to 70°C (-4 to 158 F°)

•    External Power                        8.0 to 18.0 V power provided via vehicle battery

•    Length\Width\Height                117 mm (4.61”) \72 mm (2.83”)\18 mm (0.71”)

•    Weight                                  0.18kg (0.39lb, without wire) or 0.21 kg (0.46lb, with wire)





What’s in the box

•    1 x Auto Link® ML319

•    1 x User manual

•    1 x  CD (DTC Library)

•    1 x USB cable

[Related Categories: Diagnostic Tools ]
[Related Keywords: ecu tester, car fault detector, ecu repair tools, autel maxilink ml319, car ecu test tool, ecu testing tool, car diagnose machine, car sensor tester, universal ecu tester ]
LaunchX431 Easydiag 2.0 Diagnostic Tool Easy diag plus for Android/IOS LaunchX431 Easydiag 2.0 Diagnostic Tool Easy diag plus for Android/IOS

Original Launch EasyDiag 2.0 For Android and IOS 2 IN 1 +OBD16pin extension cable

Pls Note: This item has been upgraded and encrypted by LAUNCH, therefore any pirated software can not be supported. Serial number starts with 9685901***or others





Description:

Easygoing from Launch for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more. A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data. Full color graphing for OBD II is also available. This scan tool does not require an interface. A single Bluetooth connector along with the company\'s software allows the user to select from over 30 manufacturers for Asian, European and Domestic applications.



​

Notice:

1.Easydiag 2.0 plus includes 2 free vechicles software+DEMO+EOBD

2.Easydiag 2.0 only include hardware, without any free software.



---Buy one of the software from Launch website, can get free DEMO + EOBD



     50 USD for 1 car brand software.



    100 USD  for 3 car brands software .





Easydiag SP164 (2)Easydiag SP164 (4)



FAQ(please read before order):

Q1: What is different between Easydiag 2.0 and Easydiag 2.0 plus?

A1:  Easydiag 2.0  is not including free software, Easydiag 2.0 plus is including 2 free software


Q2: Can it work with android system?

A2: Yes, both of them support android and IOS system.







Launch EasyDiag Highlight:

Vehicle diagnostic tool & Convenient, economical and advanced vehicle accessories

1.Supports OBD-II protocol, 10 test modes

2.Built-in Bluetooth module

3.Compatible with Andriod and iOS devices

4.Support all cars with 16-pin OBD port

5.Reads all DTCs and supports live data stream display





item parameter

Specification:

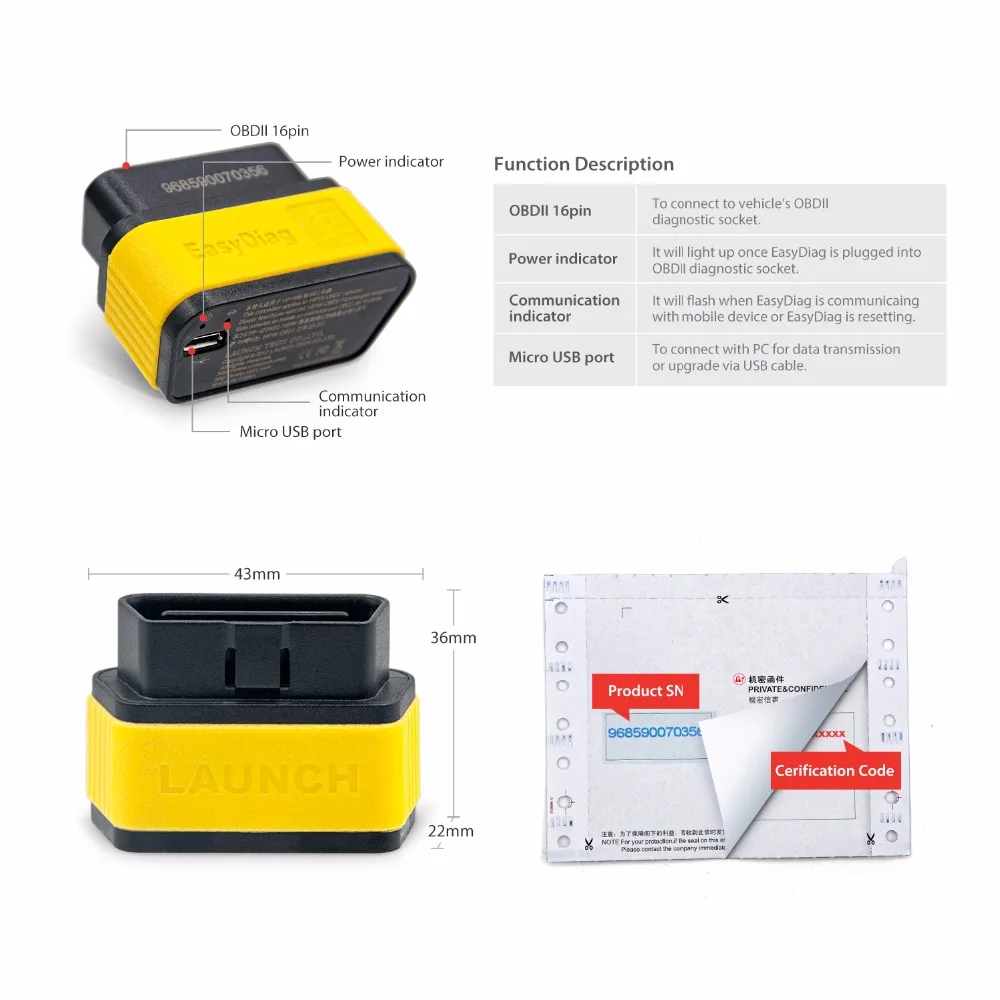

Connection Method:Standard OBDII Interface,Micro USB2.0;

Typical Consumption:(12V) Static Current 25mA

Average Working Current of Overall Unit: 35mA

Working Temperature:-20 to 55C (-4 to 131F)

Storage Temperature:-30 to 70C (-22 to 158F)

Storage Humidity:<80%

Working Humidity: <60%

Dimension:LxWxH=48mmx24mmx32mm

Net Weight:Approx 26g

Working Voltage:Powered by vehicle battery, DC 9-15V

​



Key Specifications/Special Features:

1.Reads and clears codes on all vehicle systems

2.Complete system and subsystem& nbsp;coverage (engine, ABS, SRS, transmission and more) with live date and color graphing

3.Enhanced live date and for all vehicle system

4.Includ es Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector

5.Intuitive interface and easy to use< /p>

6.Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability

7.Single carline software priced individ ually per vehicle manufacturer

Additional coverage, capabilities and functions with each new software update

8.It supports lots of language:

launch easydiag (1)

[Related Categories: Diagnostic Tools ]
[Related Keywords: ecu test equipment, car ecu test tool, launch x431 easy diag diagnostic tool easydiag 2.0, launch x431 idiag auto diag, obd2 bluetooth ]
